Beskrivning

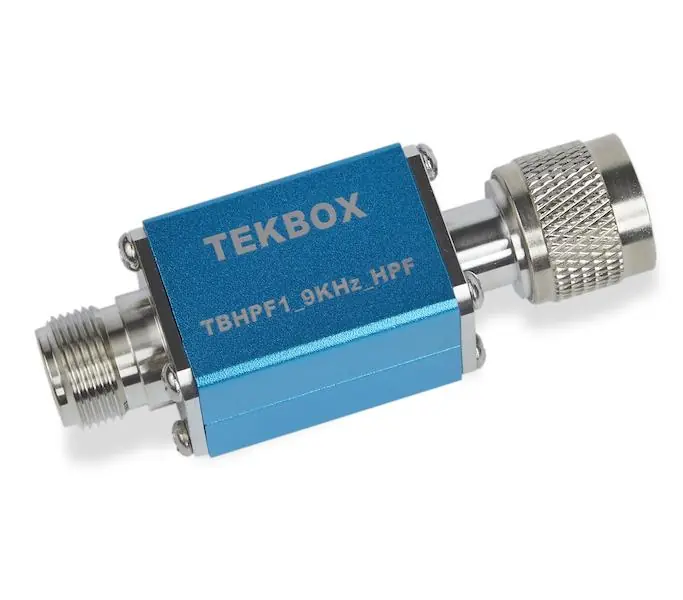

9 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups
High Pass Filter, reflective, 50 Ohm
3dB bandwidth: 9 kHz – 3 GHz
Maximum input voltage: 100V; 250V for < 5 sec.
Maximum permitted input current at frequencies < 9kHz and open output: 160 mA
Maximum input power at frequencies 20 kHz – 1 GHz: 10W
Resistive dampening to prevent pulses with high rise time cause excessive ringing
Connectors: N-Male / N-Female
Dimensions: 26 x 26 x 82 mm
Weight: ca. 100g
