Beskrivning

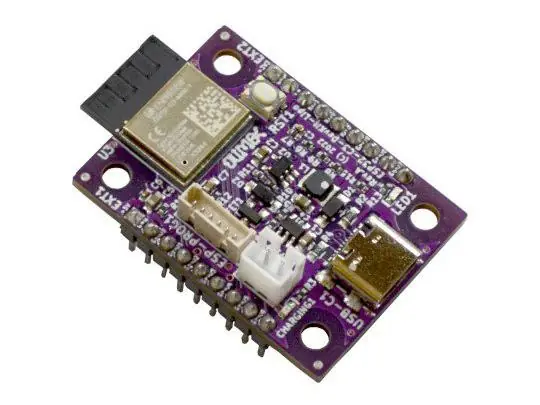

ESP32-C3-DevKit-Lipo is entry level RISC-V board with USB, JTAG, WiFi, Bluetooth5 and Lipo charger.
- RISC-V single core processor runninig on 160 Mhz
- 384 KB ROM, 400 KB SRAM, 8 KB SRAM in RTC
- 4 MB embedded flash
- 2.4 GHz WiFi (802.11 b/g/n) 1T1R up to 150 Mbps
- Bluetooth 5
- 15 GPIOs
- Onboard antenna
- Build in LiPo battery charger with STATUS LED, for handheld operations
- Lipo battery connector for Olimex LiPo batteries
- Reset button
- STATUS LED
- ICSP programming connector for rescue with ESP-PROG-C
- 4 mount holes
- USB-C connector for Debugging and Programming
- EXT1, EXT2 headers with all signals and power supply
