Beskrivning

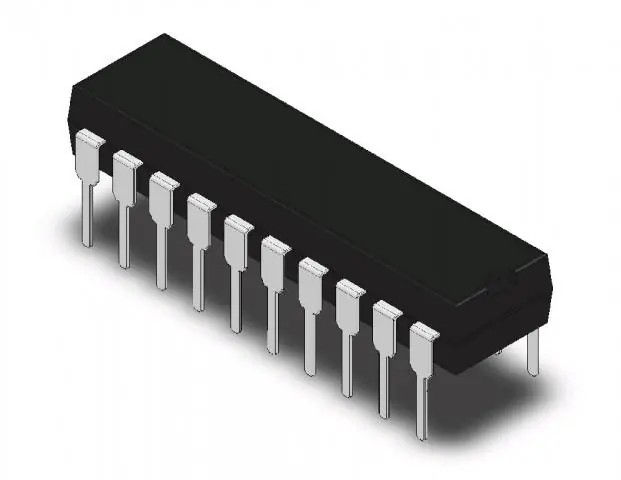

Microcontroller based on the AVR RISC architecture.
Max CPU operating frequency: 20MHz
Flash: 2kB
RAM: 128B
EEPROM: 128B
Features
* One 8-bit Timer/Counter with Separate Prescaler and Compare Mode
* One 16-bit Timer/Counter with Separate Prescaler, Compare and Capture Modes
* Four PWM Channels
* On-chip Analog Comparator
* Programmable Watchdog Timer with On-chip Oscillator
* USI – Universal Serial Interface
* Full Duplex USART
* debugWIRE On-chip Debugging
* In-System Programmable via SPI Port
* External and Internal Interrupt Sources
* Low-power Idle, Power-down, and Standby Modes
* Enhanced Power-on Reset Circuit
* Programmable Brown-out Detection Circuit
* Internal Calibrated Oscillator
* 18 Programmable I/O Lines
* Speed Grades: 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
* Temperature Range: Industrial (-40° to +85°C)
